Tamiya 1/12 Honda NSR250 Repsol '90/91 - Overview

Kit Contents (#14059)
Boxart
Sprues
A:Grey:44, B:Orange:46, C:Clear:4
Miscellaneous

9 screws, rear shock spring, black thick & thin vinyl tubing, two slick rubber like tires

Total of 108 parts

Colour Schemes
1990
    #4 C.Cardus
1991
    #2 C.Cardus
Paints
Lacquer: MS-12, 15, 30
Gloss Acrylic:
X-1, 2, 4, 6, 9, 11, 12, 18, 23, 27
Flat Acrylic: XF-1, 8, 10, 16, 20, 56
Release History
1992/?? - 1500
2000/05 - 1800

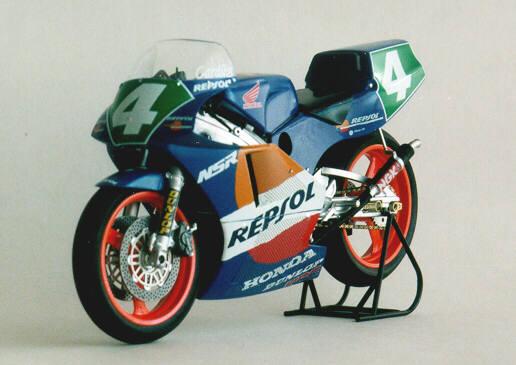

Completed December 27,1998





























1:1 References

Engine Using the knowledge gained from the design of the NSR500's power plant, the NSR250's is a 249cc V-2 cylinder two-stroke engine. It features liquid cooling, single-pressed crankshaft, rear-mounted carburetors with throttle sensing system, and the RC Valve System to control porting.
Displacement
Max. Power
Max. Torque
Transmission
Final Drive
Bore & Stroke
Compression Ratio
Carburetion
Ignition
Exhaust
Frame Constructed from twin spar aluminum for exceptional rigidity. The swing arm is also constructed of aluminum in a triangulated box-section having a single shock absorber.
Suspension Front:
Rear:
Brakes Front:
Rear:
Tires Front:
Rear:
Wheelbase
Dry Weight
Fuel Capacity
Acceleration
Top Speed
Cowling In an effort to reduce drag and improve handling the cowling is punched with holes.
