Upgrading the Palm III to 8M



Modifying your device will void the warranty provided by the manufacturer!

Upgrading the III to 8M

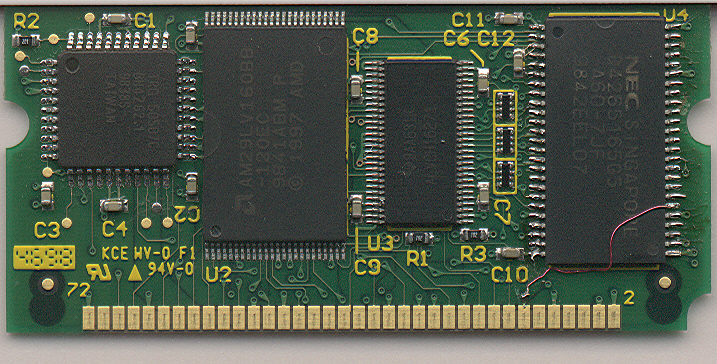

Step one -- the chip

  • Remove the RAM chip from the board
  • Prepare the replacement RAM chip by bending pin 31 slightly up (to prevent it from touching the board once it is installed. Don't break it off, you'll need to attach a wire to it later.
  • Solder the 8M DRAM chip to the board. (don't solder pin 31!)
  • Connect a small jumper from pin 31 to the connector strip #14 (7th from the right). Try to avoid soldering directly to the gold pad.

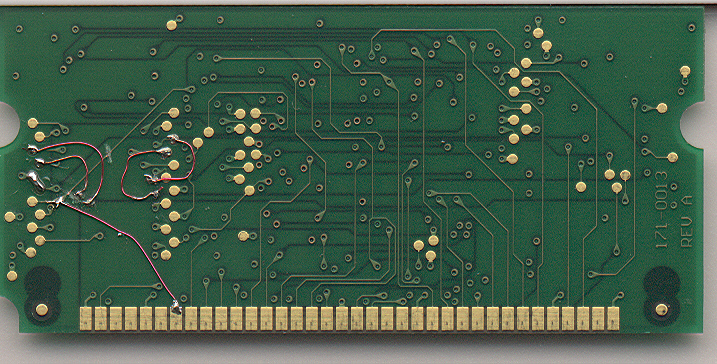

Step 2 -- the back

There are 7 steps required.

  • On the back of the board, gently cut the long diagonal trace on the left (see image)
  • Connect the 5 jumpers are illustrated. You may need to remove some of the green solder-resist material first.
  • Add a small jumper, or just flow the solder over the two very close gold contacts at the left of the board (see illustration).

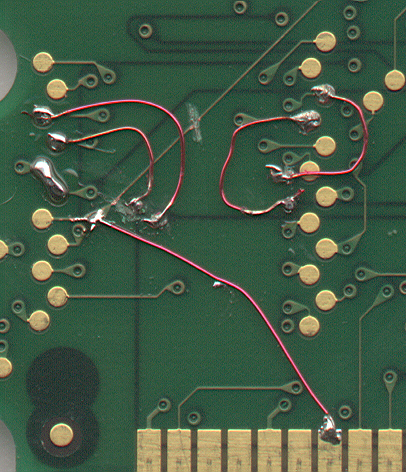

Click for more detail

Good luck!


The 8M DRAM chip required should be a 4K refresh chip. Self refresh is NOT required for this upgrade. Some compatible parts are:
