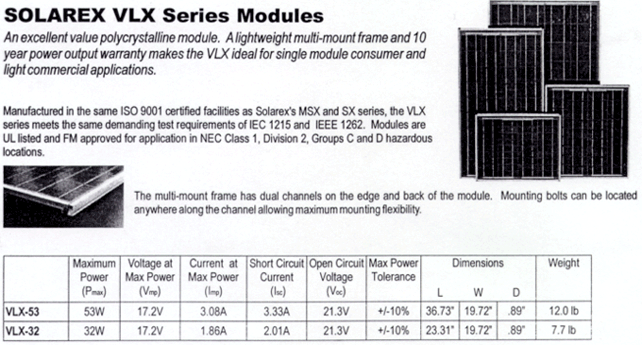

Solarex VLX Series Modules
SOLAREX GIVES YOU THE BEST OF BOTH.
for economy in a solar module? You probably thought you'd have
to sacrifice quality, performance and reliability. Now you don't
have to. Solarex introduces the Value Line! Manufactured in
ISO 9001 certified factories using world class technology, the
VLX modules are attractively designed and intelligently engineered.
Constructed to the same high manufacturing standards as our
industrial product line, our new VLX 53 and 32 watt low profile
modules are the affordable solution for many applications
Voltage Capability. The VLX-53 and -32. Thirty-six semicrystalline
solar cells are arranged in two 18-cell strings. Combined in series,
these strings produce 12 volts. The strings terminate in s junction box,
and can be reconfigured in parallel, or on-site, to produce a 6 volt
output. This arrangement also allows bypass diodes to be placed every 18
cells (2 per module) improving reliability and performance in higher
voltage (24V and above) systems.
Spacious and Convenient. The junction box is large enough to house
multiple array connections and a Solarex regulator.
Flexible. Terminals in the junction boxes attach easily and quickly
to wide variety of wire termination, including bare wire. Industry
standard openings accept English ˝" nominal, or metric PG 13.5
cable or conduit fittings.
Semicrystalline Solar Cells. Our technology is the result of
pioneering research in photovolatics and more than 20 years of
successful field installations.
Rugged, Weatherproof Construction. Cell strings are laminated
between sheets of ethylene vinyl acetate (EVA) and tempered glass with a
durable light blue Tedlar backsheet.
Clear-Annodized Extruded Aluminum Frame. This corrosion resistant,
attractive framing is compatiable with Solarex mounting hardware and
most other mounting structures.
Tempered Glass Superstrate. Self-cleaning and highly transmissive,
this inert, impact resistant glass provides many years of trouble-free
Laminate Construction. Tempered low-iron glass superstrate with 4 x
9 (36) cell matrix and EVA/Tedlar encapsulation. Tedlar background is
light blue (Salem Blue) behind the cells.
Cells 53 Watt 36 5/6 MEGA™ (9.5cm x 11.4cm)
32 Watt 36 1/2 MEGA™ (5.7cm x 11.4cm)
Frame and Mounting. Extruded aluminum multimount frame with clear
anodized finish. Multimount slots accepts English ˝" system
5/16" or metric 8 mm hex-head bolts. Center-to-center dimension of
the multimount slots is 18.38" (467 mm).
Ten Year Warranty. Solarex's warranty guarantees that each unit will
produce 90% of its minimum rated power for ten years.
