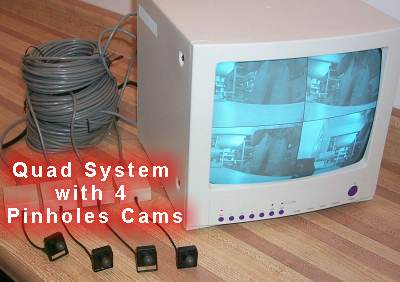

System Monitor Features:

• Quad Display - Can display four cameras at a time!
• Picture Freeze - Can freeze a picture on the screen in the Quad Display Mode.
• Auto Freeze on Video Loss - Automatically freezes the last picture displayed in the quad mode when a loss of video is detected.
• Full Screen Display - Can display one Camera at a time on screen, Full Size.
• Vertical Interval Switching - Instant picture (no blanking or rolling) when switching from one camera to another.
• Sequential Switching - Can change from one camera to the next in the Full Screen Mode and displays the quad display before restarting the display of individual cameras.
• Automatic Skip - If a camera position is not used or a loss of video occurs, that position is skipped in the Sequential Mode - or - is blank in the Quad Mode.
• Variable Dwell Time - The amount of time a camera is displayed in the Sequential Switching Mode can be adjusted from 1 - 60 seconds.
• Audio Inputs - Each camera has a microphone to enable audio recording from a camera location.
• Main / Monitor Power Switches - There are separate switches for the monitor and the Quad / Switching section of the observation system. This allows the monitor to be turned off to extend monitor life without interupting the recording of the cameras.
• VCR Input / Output - Allows Audio & Video signal to be sent to a VCR for recording and allows recorded tapes to be played back and reviewed at the monitor.
• Resolution: > 700 lines at the Center
