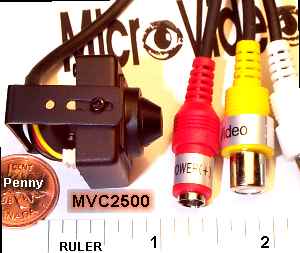

# MVC2500
Miniature B/W Video Camera

© ©

---

WOW - This miniature camera is "really small" & has a metal case !

---

Robotics, Remote Contol Aircraft Or Industrial Inspection applications.

1. Output compatable with your VCR or video capture board
2. Real CCD - solid state video sensor ("NOT" Low res. / low sensitivity CMOS type sensor)

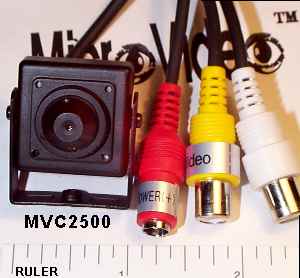

3. Incredibly small with metal case
4. Automatically adjusting iris - for varying light levels

Camera Specifications:

• Scanning System: EIA 525 lines, 2:1 Interlacing
• Image Sensor: 1/3 inch solid state interline CCD
  ("NOT" Low res. / low sensitivity CMOS type sensor)
• Lens: Pinhole or Standard miniature available
• Field of view: ~ diagonal 60 degrees
• Sync System: Internal
• Iris: Automatic adjust
• Shutter/Exposure: Automatically selected, 1/60 - 1/100,000 sec.
• Video Output : VBS 1.0 +/- .2 v p-p - 75 ohm
• Horizontal resolution: more than > 400 TV lines
• Luminance S/N: More than 45db
• Sensitivity: .1 Lux
• Voltage: 9 - 12 volts @ 100 ma.
• Size: 25 mm square (less than 1")
• Audio: Audio option is available

• Simple wiring. Power & RCA Jacks included. 9 - 12 Volt power supply is needed.
• If you want us to do custom wiring or add a power supply - just ask & we'll quote.
• Full instructions supplied.
