Micro Video ^(TM) Products

TM©

---

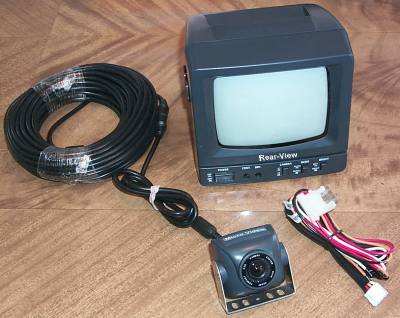

MV27F552 - Rear Viewer Vehicle Observation System

---

©

---

1. Selectable Mirror (Reverse) Imaging onscreen
2. Backup Monitoring system for RVs, Motorhomes, Trucks, Buses & Boats
3. Great Safety Enhancement for many Industrial Vehicles
4. Two Camera Capability
5. Waterproof & Weatherproof Cameras

Monitor

- c/w Mount Bracket, Sun Visor, Cig. Lighter Adaptor, Hardware

• TV System EIA Standard - 525 Lines
  with Selectable Mirror (Reverse) Imaging onscreen
• Power Consumption ~ 10 W.
• Operating Temp. -15 C. to + 60 C.
• Storage Temp. -25 C. to + 85 C.
• CRT B/W
• Dimension 152 (W) x 195(H) x 200(D) mm.
• Weight about 2 Kg. (5 Lbs)

---

Camera

Weatherproof & Waterproof c/w stainless mounting bracket & 55 Ft. cable

• Imager 270,00 pixel CCD
• Angle of View 120 Degrees Diagonal
• Minimum Illumination 0.5 Lux
• Camera Voltage 12 V DC ( supplied from Monitor)
• Camera Weight 0.18 Kg. (0.4 Lbs)
• Camera Size 60(W) x 50(H) x 50(D) mm.
