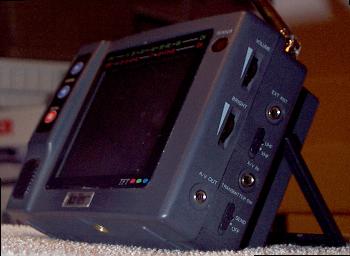

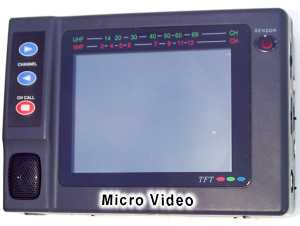

# PTV601 "Color LCD"
Portable 4" Viewer / Monitor
Hook up a Video camera to this & you have live video
Use external batteries or use built in Battery pack

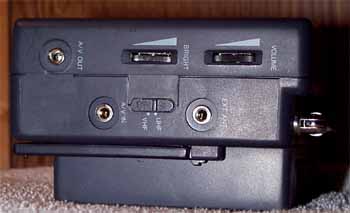

Easy to use A/V inputs & A/V outputs, TV band selector, Volume & Brightness
Industrial Inspection, Robotics & Surveillance applications abound.
How about just use it as a Small TV. UHF & VHF Tuner is built-in!

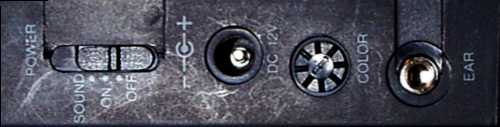

Easy to use Power, Sound, Color control & Earphone controls
Inputs & Output compatable with your VCR or Normal Composite NTSC Video signals
Modern TFT LCD technology
Specifications of Color TFT-LCD TV/Monitor
Display Size: 4" Diagonal
Driver: Active Thin Film Transistor
Light Source: W-Shaped CCFL (Cold Cathode Flourescent Lamp)
Video Standard : 1.0 V p-p - 75 ohm Composite NTSC
Voltage: 12 volts (external or internal Power can be used)
Overall Size: ~ 6" Wide x 4-1/4" tall
Simple to use. Built in battery case - just add "AA" cells
Full instructions supplied.
One Mill Line Road
Bobcaygeon, Ontario, Canada, K0M 1A0
