OUTDOOR "Insulated" Housings for Surveillance Cameras
No need for Heaters & Blowers

Here's the OUTDOOR Enclosures, Brackets & Cameras - ready to go!!
Get real time surveillance video around your buildings or property that can be connected to a monitor, VCR or TV.

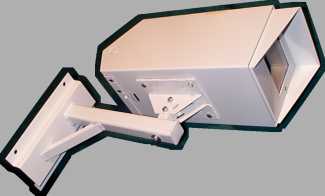

hsg with mount kit

Click on thumbnails
for bigger pics

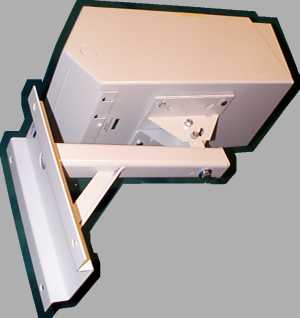

sideshot w/ mount

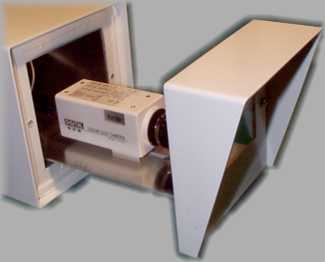

open cam installed

housing partly closed

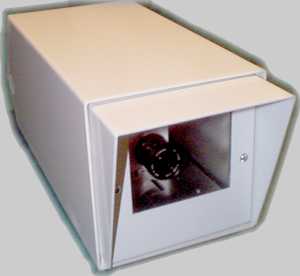

with housing closed

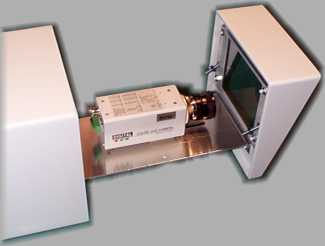

showing installed cam

Click on thumbnails
for bigger pics

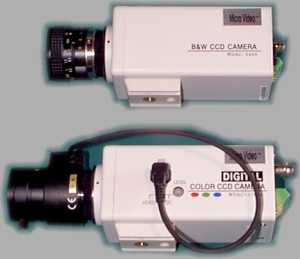

typical B/W & Colour Cams with lens options

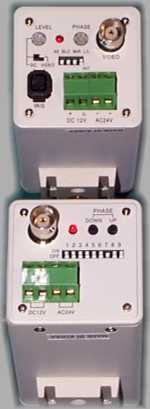

Camera connections


These very rugged Metal Outdoor enclosures are hermetically sealed and insulated. By using insulated housings there is no need for heaters & blowers... the heat from the operating cameras is enough to keep the units warm through most cold weather conditions. Enclosures are prewired with coaxial & power supply cables. Access doors for installing cameras are weatherproofed. The enclosures have a sliding pullout tray for simple camera installations.
General Info.

  • All Aluminum construction guage 11.
  • Lexan Plastic Window is 3/16 ".
  • Camera is easily accessible for service and installation.
  • Light weight & tamper proof.
  • Various Mounting Options.
  • No Heater or Blower required.
  • Completely insulated with AK board Fiber-Glass - 2.5 cm / 1" thick.

  • To see our matching Surveillance cams - go to
    Surveillance Cams
