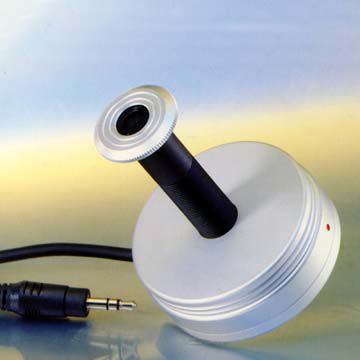

# MV-PeepHole
Peep Hole Door Video Camera

© ©

---

Drill a 1/2" or 13 mm. Hole into a Door up to 1 3/4 " thick - Slip Camera in - Your Done!!
- Or remove your present plain peephole and Replace with this system!

---

1. View what's (or who is) outside your door - see on your TV monitor & record on your VCR


   ---

   A Great Gift for Shut-Ins or people with Impaired Mobility

   ---

2. Real CCD - solid state video sensor ("NOT" Low res. / low sensitivity CMOS type sensor)
3. Ultra small size allows for simple application and installation
4. Automatically adjusting iris - for varying light levels

Camera Specifications:

• Scanning System: EIA 525 lines, 2:1 Interlacing (625 line CCIR version on special order)
• Image Sensor: 1/3 inch solid state interline B/W CCD Image sensor
• Lens: Special Custom Barrel Pinhole version
• Field of view: ~ diagonal 80 degrees
• Sync System: Internal
• Iris: Automatic adjust
• Shutter/Exposure: Automatically selected, 1/60 - 1/100,000 sec.
• Video Output : VBS 1.0 +/- .2 v p-p - 75 ohm
• Horizontal resolution: more than ~ 400 TV lines
• Luminance S/N: More than 45db
• Sensitivity: .4 Lux
• Supplied Voltage: 9 - 15 volts @ 110 ma.
• Size: 1/2" Diameter barrel is 13/4" long
• ENCLOSURE: Made of Aluminum

• Simple wiring
• If you want us to do custom wiring - just ask & we'll quote.
• Full instructions supplied.
