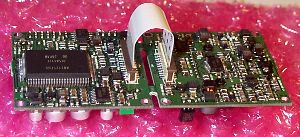

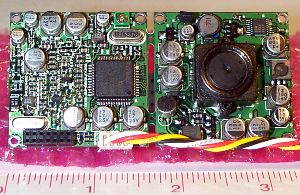

# MVC 621C Color Video Cameras
" with Audio"

© © ©

1. NTSC Video output, and Audio output, compatable with VCR or capture board
2. Real CCD - solid state video sensor ("NOT" Low res. / low sensitivity CMOS type sensor)
3. Incredibly small for special applications!!
4. Automatically adjusting iris - for varying light levels

Camera Specifications:

• Signal Format: NTSC (Composite Video)
• Scanning System: 525 lines, 2:1 Interlacing
• Scanning Frequency: Horzontal: 15.734 kHz, Vertical: 59.94 Hz
• Image Sensor: 1/3 inch solid state interline CCD Image sensor
  ("NOT" Low res. / low sensitivity CMOS type sensor)
• Total Pixels: 512 (H) 492 (V) -250,000 pixels

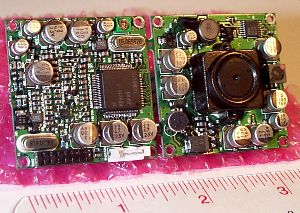

• Lens: 4 mm (Pinhole & C/Cs Mts available)
• Field of view: ~ diagonal 90 degrees
• Sync System: Internal
• White Balance: Automatic control
• Iris: Automatic adjust
• Shutter/Exposure: Automatically selected, 1/60 - 1/100,000 sec.
• Video Output : 1.0 V p-p Composite Signal - 75 ohm
• Horizontal resolution: more than 340 TV lines
• Luminance S/N: More than 45db
• Sensitivity: 1 Lux @ F1.4 without LPF
• Gain Control: Auto
• Audio Frequency range: 20 hz - 20 Khz.
• Audio Output Level: 1V p-p / 600 ohm
• Supplied Voltage: 9 - 15 volts @ 160 ma. (remarkably low!!)

• Simple soldering of RCA & power connector to supplied cable required.
• If you want us to supply custom wiring - just ask & we'll quote.
• Full instructions supplied.
