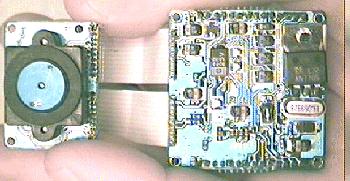

# MVC 37C Color Video Cameras
©
©
©
©
©
NTSC output, compatable with your VCR or video capture board
CCD - solid state video sensor
Incredibly small for special applications!!
Automatically adjusting iris - for varying light levels
Camera Specifications:
Signal Format: NTSC (Composite Video)
Scanning System: 525 lines, 2:1 Interlacing
Scanning Frequency: Horzontal: 15.734 kHz, Vertical: 59.94 Hz
Image Sensor: 1/3 inch solid state interline CCD Image sensor (Sharp)
Total Pixels: 512 (H) 492 (V) -250,000 pixels
Lens: F2.0, f = 3.6 mm
(Pinhole & C/Cs Mts available)
Field of view: ~ diagonal 90 degrees
Sync System: Internal
White Balance: Automatic control
Iris: Automatic adjust
Shutter/Exposure: Automatically selected, 1/60 - 1/16,000 sec.
Video Output : VBS 1.0 +/- .2 v p-p - 75 ohm
Horizontal resolution: more than 330 TV lines
Luminance S/N: More than 45db
Sensitivity: 1 Lux @ F1.4 without LPF
Gain Control: Auto
Suppy Voltage: 6-7 volts @ 230 ma. (12 Volt adaptors available)
Simple soldering of RCA & power connector to supplied cable required.
If you want us to do custom wiring - just ask & we'll quote.
Full instructions supplied.
Amazing Products
Micro Video
(TM)
Products
One Mill Line Road
Bobcaygeon, Ontario, Canada, K0M 1A0
For futher information write to:
info@microvideo.ca
MVC 37C
......... (board only)
$call$
MVC 37C -4 - 8
.... (in dual microcases)
$call$
