Micro Video Products "MV324-AE"
Video Surveillance over ordinary Phone Lines - at Home, Business or Industry
The MV324AE is a multipurpose video Surveillance platform using Plain Old Telephone line connections.
A non-stop watchdog for your precious property.
For Example:

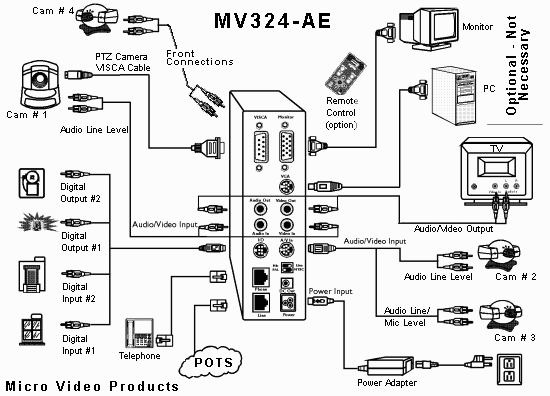

- Connect 4 video cameras (even miniature "covert" ones) to the MV324AE, connect it to the local phone line -
Then, from any plain phone jack in the world - you will be capable of remote surveillance -
OBSERVE the front door , the back door, the cash register & the loading dock, the kids or the backyard - all through one phone line!!
The advanced architecture of the MV324AE implements four independent video input channels.
This allows some amazing cost-effective solution for observation, surveillance or monitoring of remote locations.
Highlights:
- Four Video Sources Selectable
- H.324 International Standard Compliant
- Simple Installation and Easy Operation
- Single key operation for connection establishment
- Full Screen Display Capability on TV or PC monitor
- Auto Answering and Password Support
- Infrared Remote Control (Option) Capability
- Selectable Mic./Line input
- 2 pairs DI/DO open/close pins for surveillance applications
- Digital pan/tilt/zoom function
- Store latest configuration in built-in flash memory
- Built-in 33.6Kbps high-speed modem
- Up to 15 frames per second video display
- Standing /Lie down /wall mount capable
Specifications - Complies with ITU - T H.324 standard
- System: ITU-T H.324
- Signaling: H.245
- Channel Multiplexer: H.223
Video
- Resolution: (352 x 288 pixels) FCIF images, (176 x 144 pixels) QCIF images, (128 x 96 pixels) SQCIF images
- Frame Rate (SQCIF mode max): 15fps
- Video input: Up to 4 Analog (composite) video inputs (ie. four external cameras)
- Video output: Composite (NTSC/PAL) A/V, or VGA
Audio
- Algorithm: ITU-T G.723
- Frequency response: 50HZ - 3.4KHZ
- Automatic gain control
- Audio input: Telephone handset, Mic input, Line in
- Audio output: Telephone handset, Speaker out, Line out
Network Interface
- Phone Line Connector: RJ-11 (a regular telephone jack)
- Transmission speed (Max.): 33.6Kbps - modem bult-in
- Diagnostic: LED indication on card, Self test
|
- Micro Video (TM) Products
- One Mill Line Road
- Bobcaygeon, Ontario
- Canada K0M 1A0
- Phone: (705) 738-1755 Fax: 738-5484
- http://www.microvideo.ca
|
