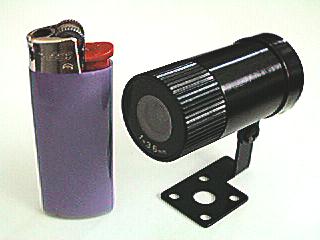

# MVC2000 Miniature "Tube"
Lipstick Video Cameras

© ©

---

Drill a 7/8" Hole into a Door or Wall - Slip Camera in - Your Done!!
- Or use the Simple Mount Kit (supplied) & Mount anywhere!

Helmet Cam - Click to see Picture of typical Helmet "Lipstick" Cam package

---

1. Output compatable with your VCR or video capture board
2. Real CCD - solid state video sensor ("NOT" Low res. / low sensitivity CMOS type sensor)
3. Incredibly small Weather-Resistant Housing included
4. Automatically adjusting iris - for varying light levels

Camera Specifications:

• Scanning System: EIA 525 lines, 2:1 Interlacing (625 line CCIR version on special order)
• Image Sensor: 1/3 inch solid state interline B/W CCD Image sensor
  ("NOT" Low res. / low sensitivity CMOS type sensor)
• Lens: f = 3.6 mm
• Field of view: ~ diagonal 80 degrees
• Sync System: Internal
• Iris: Automatic adjust
• Shutter/Exposure: Automatically selected, 1/60 - 1/100,000 sec.
• Video Output : VBS 1.0 +/- .2 v p-p - 75 ohm
• Horizontal resolution: more than ~ 400 TV lines
• Luminance S/N: More than 45db
• Sensitivity: .2 Lux @ F1.4
• Supplied Voltage: 9 - 15 volts @ 110 ma.
• Size: 7/8" Diameter barrel x 2" long
• ENCLOSURE: Made of Aluminum, Weather-Resistant

• Simple wiring
• If you want us to do custom wiring - just ask & we'll quote.
• Full instructions supplied.
