MVC 058 Series Micro Cameras
©
©
YES - You can view a scene through a 1/32" pinhole
- and get real time video signals that can be connected to a monitor and/or VCR.
These are our very best video Cameras in a small size - they operate at 9 or 12 Volts D.C. - will not overheat like some cameras!
As you can see we have a custom case that is only 1/2 inch thick.
You can ask for narrow, medium or wide angle Field of View Pinhole lenses.
( Standard & C/Cs Mounts available also)

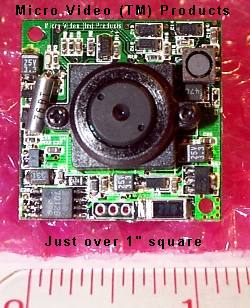

Featuring Top Quality Glass optics, military quality PC board design & using low power consumption microchips ! -
the very best technology available!
This is
NOT
a CMOS device - this is a real CCD - there is a big difference in capabilities!
Camera Specifications:
Signal Format: EIA or CCIR versions available (Composite Video)
Scanning System: 525 lines, 2:1 Interlacing (625 lines for CCIR version)
Scanning Frequency: Horzontal: 15.734 kHz, Vertical: 59.94 Hz
Image Sensor: 1/3 inch solid state CCD Image sensor
This is
NOT
a CMOS device - this is a real CCD - there is a big difference in capabilities!
Total Pixels: approx. 550 (H) 500 (V) - > 250,000 pixels
Lens: Pinhole, Std. & C/Cs Mts available
(all interchangeable!)
Field of view: standard ~ diagonal 90 degrees (various available)
Sync System: Internal
Iris: Automatic adjust
Shutter/Exposure: Automatically selected, 1/60 - 1/100,000 sec.
Video Output : VBS 1.0 +/- .2 v p-p - 75 ohm
Horizontal resolution: ~ 400 TV lines
S/N: 45 dB or more
Sensitivity: .1 Lux @ F1.4
Gain Control: Auto
Supplied Voltage: 9 - 12 volts @ 90 ma.
(remarkably low!!)
MVC 058P
......... (board only)
$ 99 USD
MVC 058P - 4 .... (in 1/2" Case)
$109 USD
