High resolution monitor board

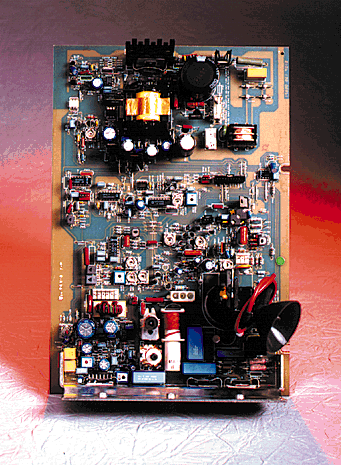

This is a main board of a high resolution monitor (CRT).
Includes SMPS, H and V deflection, dynamic focus.
Resolution up to 1600x1200, fixed format.
